UT-512

Certificates : CE, UKCA

Pixels : 640×480

Lens diameter : 9mm (Max. 10mm)

LCD size : 2.4 inches

Probe length : 1m

Screen type : TFT

Light source : 4 LED lights

Depth of field : >20mm

Video signal : Analog

Field of view : 60°

Image brightness : 6 levels-adjustable

Illumination :  4 levels-adjustable

Flippable image : √

Battery power indicator : √

Water proof : IP67 (probe only

-Characteristics :

Standard accessories : Camera probe, batteries, English manual

Power : 1.5V battery (R6) x 4

Display : 2.36 inches

Product size : 196 x 74 x 97mm

Product net weight : 500g

Standard individual packing : Gift box, blister

Standard quantity per carton : 8pcs

Standard carton measurement : 455 x 410 x 275mm

Standard carton gross weight : 6.4kg

Clamp Meter 400A - AC

Clamp Meter 400A / AC-DC

Clamp Meter 1000A / AC-DC

Earth resistance : 4kΩ

AC earth voltage : 400V

Frequency : 50Hz/60Hz

Manual range : YES

Auto power off : YES

Low battery indication : YES

Data hold : YES

Data storage : 20

LCD backlight : YES

Full icon display : YES

Double insulation protection : YES

Poor contact display : YES

Over-range display : YES

2-wire testing : YES

3-wire testing : YES

Category ratings : CAT III 600V

Certificates : CE/UKCA

for more details click here

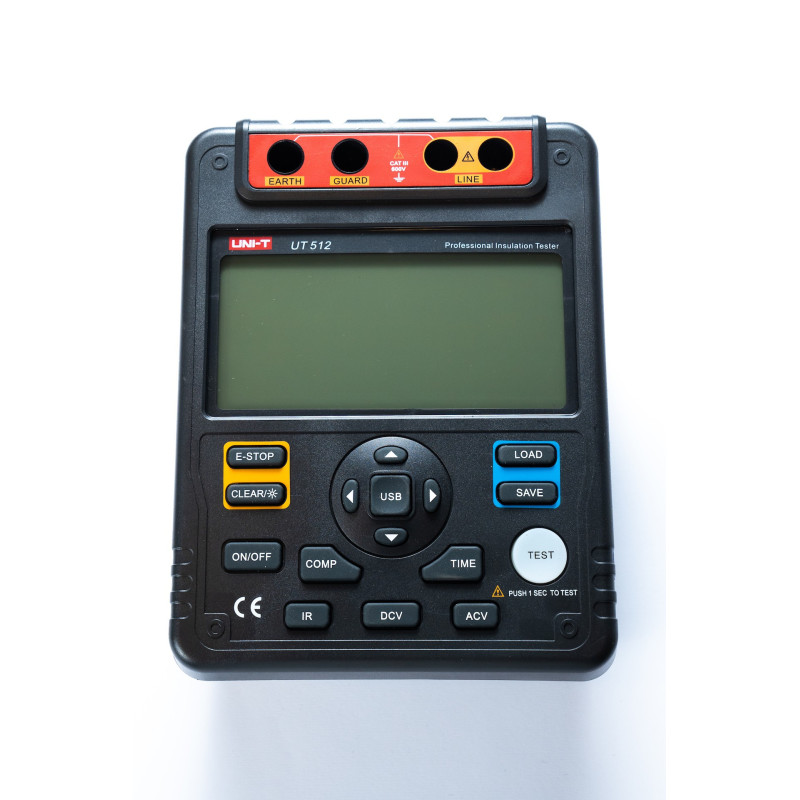

Test voltage : 5000V

Insulation resistance : 1TΩ

Short-circuit current : 3.5mA

Comparison function : YES

Polarization index (PI) : YES

Dielectric absorption ration (DAR) : YES

Auto discharge : YES

Auto range : YES

DC voltage : 600V

AC voltage : 600V

USB data transmission : YES

Data storage : 18

High voltage prompt : YES

LCD backlight : YES

Analog bar : YES

Low battery indication : YES

Overload prompt : YES

Buzzer alarm : YES

Auto power off : YES

Meets IEC 61557 : 61557-1:2007, 61557-2:2007

Category ratings : CAT III 600V

Certificates : CE/UKCA
