Reference: L298 Module Red Board (Dual H-bridge motor driver using L298N)
L298 Module Red Board (Dual H-bridge motor driver using L298N)
EGP85.00
Tax excluded

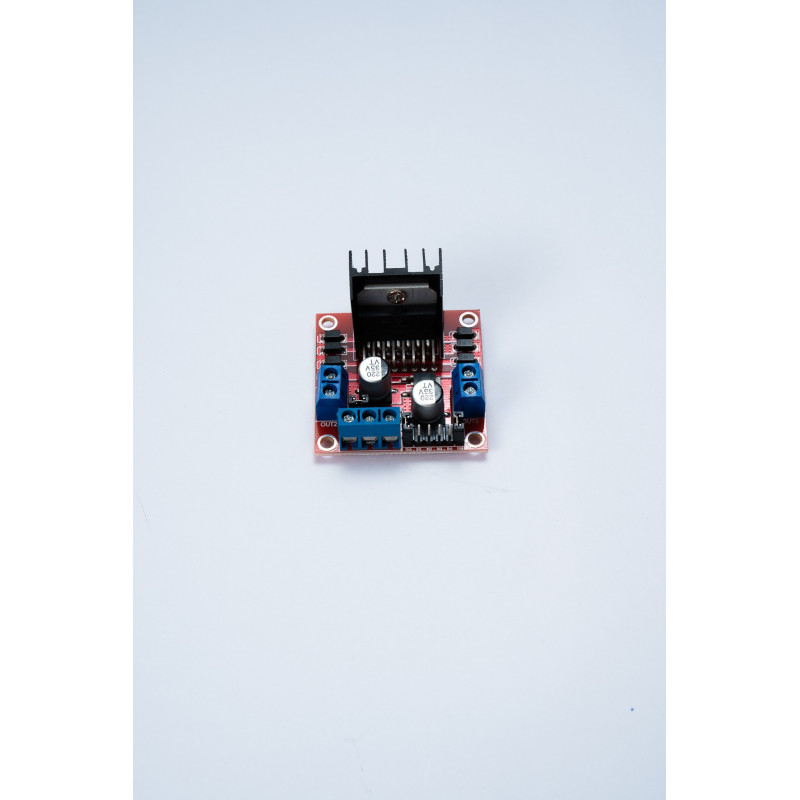

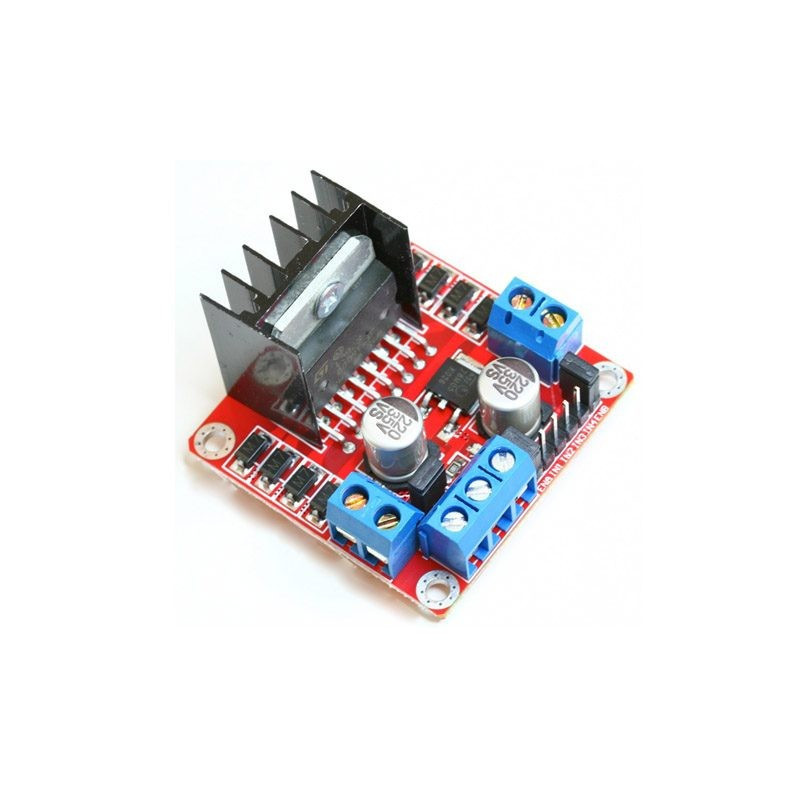

L298 Module Red Board
L298N Dual H Bridge DC Stepper Motor Drive Controller Board Module For Arduino
The L298 Stepper Controller makes it easy to drive either two DC motors or a bipolar stepper motor. This is a very high quality board and is very compact for designs where space really matters.
Features :
- Double H bridge drive
- Chip L298N (ST NEW)
- Logical voltage 5V
- Drive voltage 5V-35V
- Logic current 0mA-36mA
- Drive current 2A per channel (MAX single bridge)
- Max power 25W
- Weight 30g
- Small size 43*43*27mm ( approx 1.75" x 1.75" x 1")
- Compatible with L297/L298 driver

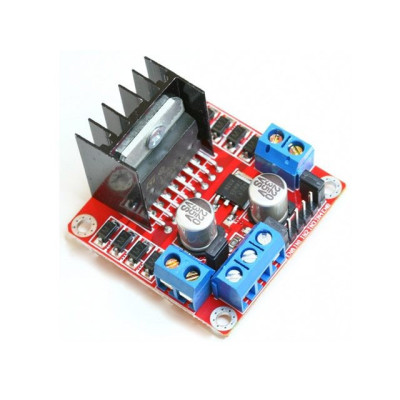

L298 Module Red Board (Dual H-bridge motor driver using L298N)
