LCD 2 X 16 BLUE

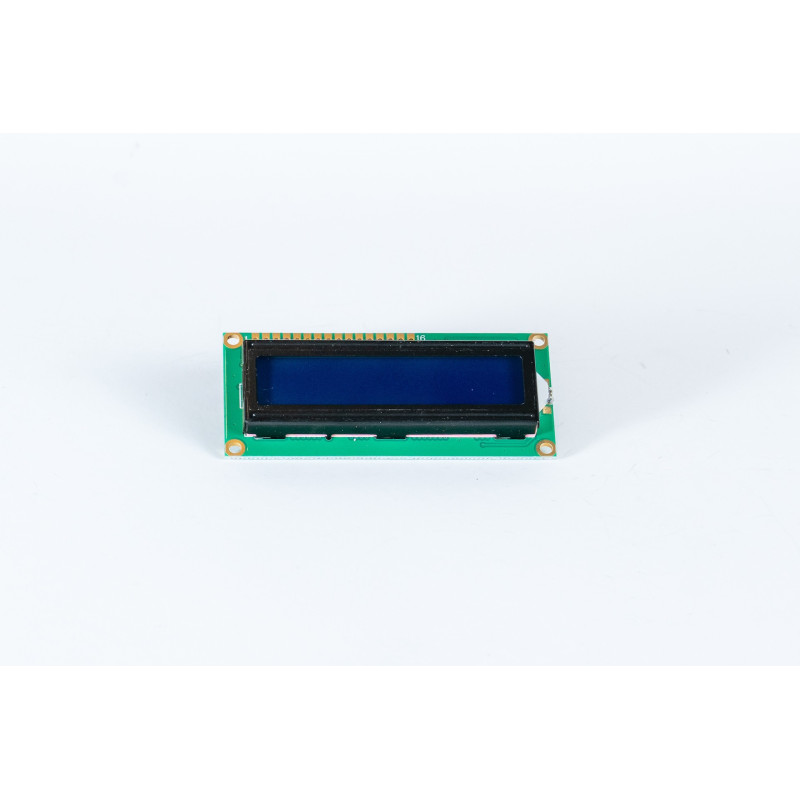

Character LCD 2×16 with blue back light.

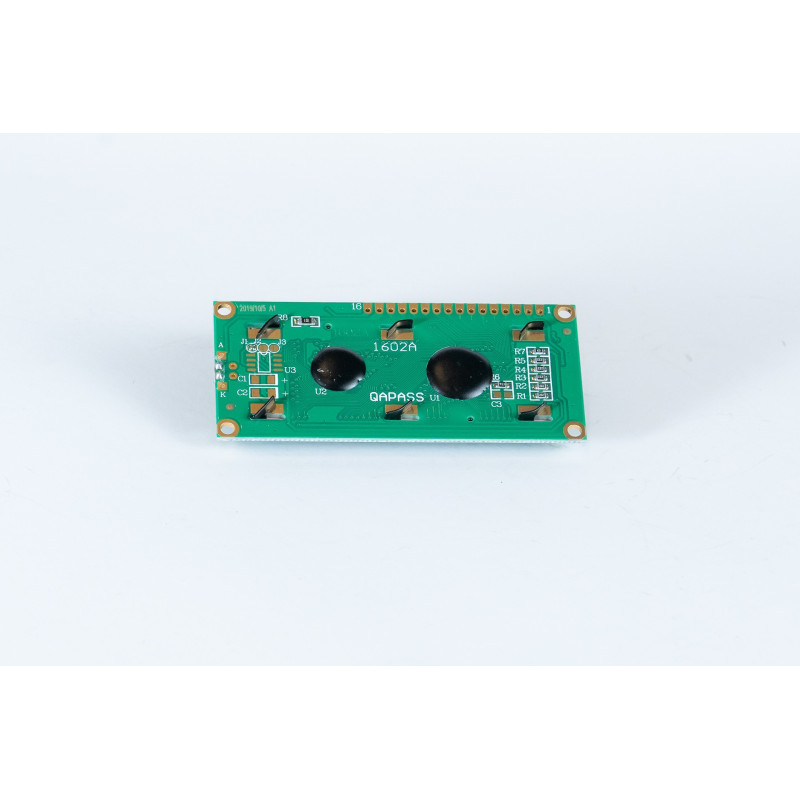

HD44780 compatible LCD Characters Display 16×02 blue color, 5V operating voltage. Dimension of the module is 80 x 36 x 13.5 mm. Take note, the picture is for reference only, LCD pcb design may have slightly difference, but the display functionality and pinout are same!

Pinout:

1 GND

2 VDD

3 VOP

4 RS

5 RW

6 E

7 – 14 DATA

15 LED +

16 LED –
